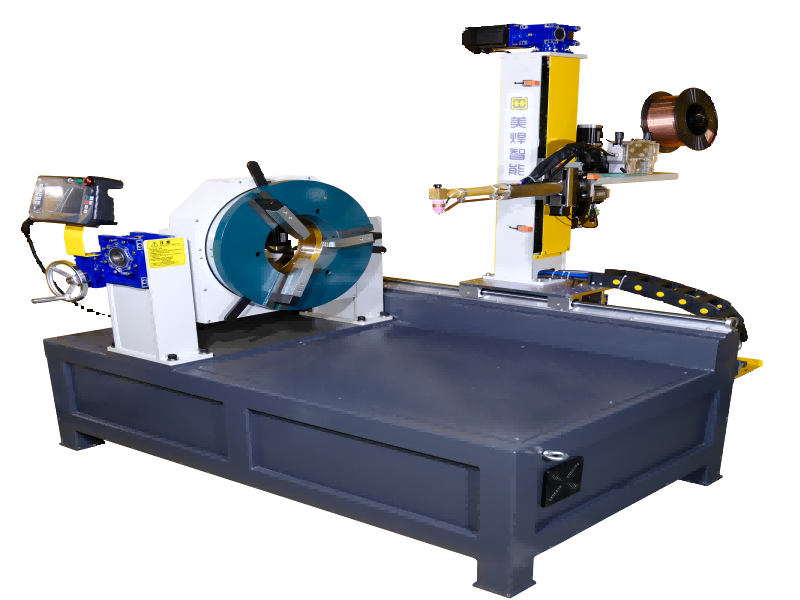

MWHF-ZM Circumferential Seam Welding Machine
Product Type: TIG Circumferential Welding Equipment
The MWHF-ZM series is a compact TIG circumferential welding system designed for pipes, elbows, and manifolds. It supports Ø30–400mm workpieces with customizable welding stroke up to 1000mm. With precise oscillation control, automatic wire feeding, and stable cooling, it delivers consistent, high-quality welds for stainless steel, carbon steel, titanium, aluminum, and nickel alloys
Product Features:
Supports multiple materials: stainless steel, carbon steel, titanium, aluminum, nickel alloys
Workpiece diameter Ø30–400mm, welding stroke 0–1000mm (customizable)
Oscillation angle ±30°, load capacity 250kg, stable long-term operation
Overview

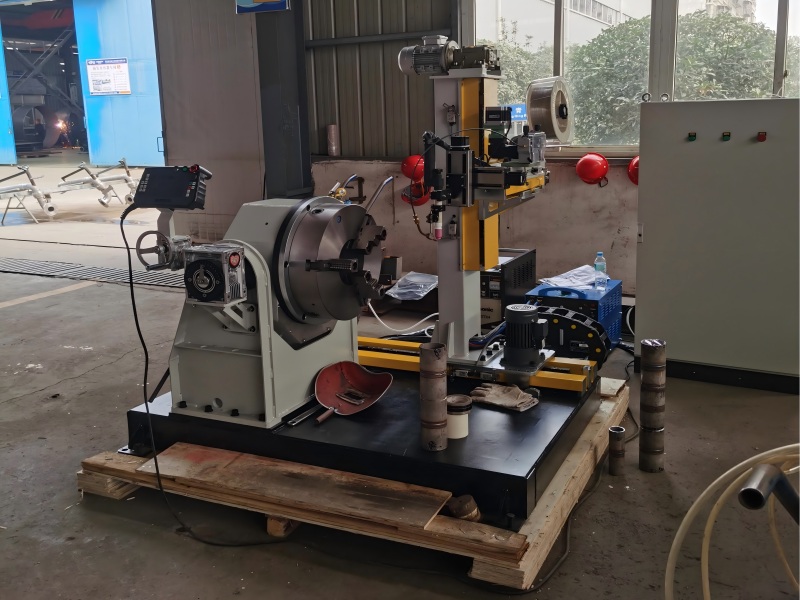

The MWHF-ZM oscillating circumferential welding machine is engineered for high-precision TIG welding of pipes, elbows, and manifolds. Designed for flexibility, it supports a wide diameter range and integrates seamlessly into automated production environments.
Equipped with digital control, real-time parameter recording, and oscillation adjustment, the system ensures welding consistency across multiple alloys such as stainless steel, titanium, aluminum, and Inconel. It is ideal for industries demanding accuracy, durability, and traceability.
Full digital control system with parameter recording and traceability
Oscillation welding ±30° for complex geometry and uniform seams
Compatible with MES/ERP systems for Industry 4.0 integration
Specification
Product Name
Model
TIG Seam Welding Machine
MWHF-ZM
Workpiece Diameter
Φ30~400
Welding Torch Travel
0~1000 (customizable)
Spindle Rotation Speed
0.1~3 rpm
Vertical Electric Slide Travel
0~300
Moving Carriage Travel
0~1000 (customizable)
Electric Boom Extension
±60 mm
Oscillation Angle
±30°
Load Capacity (kg)
250
Benefits & Features
01
High-Precision Welding
The MWHF-ZM ensures consistent orbital TIG welding with oscillation control, delivering uniform seams even on complex pipe geometries.
02
Full Digital Traceability
Integrated parameter recording and operator tracking guarantee quality control and regulatory compliance across production batches.
03
Smart Industry 4.0 Integration
Designed for seamless MES/ERP connectivity, the system supports real-time monitoring, data analysis, and automated reporting.
04
Productivity & Flexibility
Reduces downtime by up to 30% and boosts productivity by 15–25%, while accommodating multiple alloys such as stainless steel, titanium, and Inconel.
Application
The MWHF-ZM is engineered for high-demand industries requiring precision orbital seam welding solutions. Its versatility across materials and geometries makes it essential for both mass production and custom fabrication.
Aerospace & Defense – precision welding of piping systems, manifolds, and turbine components.
Energy & Automotive – TIG seam welding of exhausts, heat exchangers, and fluid transport systems.
Research, Prototyping & Custom Fabrication – flexible setup for low-volume, high-complexity projects.
FREQUENTLY ASKED QUSTIONS
Frequently Asked Questions about the MWHF-ZM Welding System
Find quick answers on setup, supported materials, system integration and service.
MH Tech Expert
What materials can the MWHF-ZM weld?
The system supports stainless steel, titanium, aluminum, Inconel, and other nickel-based alloys commonly used in aerospace, automotive, and energy sectors.
Can the MWHF-ZM integrate with MES or ERP systems?
Yes. The machine features Industry 4.0 compatibility, offering real-time data collection, parameter tracking, and seamless MES/ERP connectivity.
What industries typically use this system?
Aerospace, automotive, defense, energy, and R&D facilities relying on high-precision TIG orbital welding for tubing, manifolds, and exhaust systems.
