MWHF-HM Transverse Swing Circumferential Seam Welding Machine
Product Type: Swing Circumferential Seam Welding Machine
The MWHF-HM is a compact circumferential seam welding solution designed for high-precision pipe, flange, elbow, and joint applications. Supporting TIG, MIG, MAG, and PAW processes, it delivers stable, automated welding with full digital control. Ideal for stainless steel, carbon steel, titanium, and alloy components across aerospace, automotive, and energy industries.
Product Features:
Compact design with flexible setup for various pipe diameters (Φ10–500mm).
Supports multiple welding processes (TIG/MIG/MAG/PAW) with digital speed/current control.
Reliable automation with three-axis adjustment and stable long-term operation.
Overview
The MWHF-HM transverse swing circumferential seam welding machine provides automated, high-precision welding for pipes, flanges, elbows, and multi-angle joints. Its compact design ensures flexibility and easy integration into production lines.
Supporting TIG, MIG, MAG, and PAW processes, the MWHF-HM delivers stable arc performance with advanced digital control systems for speed, current, voltage, and wire feeding. Ideal for stainless steel, carbon steel, titanium, and alloy components, it ensures consistent quality and efficiency across industries such as aerospace, automotive, and energy.
Compact footprint with swing welding for diameters Φ10–500mm.
Multi-process compatibility (TIG/MIG/MAG/PAW) with precise digital control.
Reliable automation with three-axis adjustment and stable long-term operation.
Specification
Product Name
Model
Seam Welding Machine
MWHF-HM
Workpiece Diameter
Φ10~500
Welding Torch Travel
0~1000 (customizable)
Spindle Rotation Speed
0.1~3 rpm
Chuck Vertical Travel
250 (electric)
Vertical Electric Slide Travel
0~500 (customizable)
Moving Carriage Travel
0~1000 (customizable)
Boom Extension/Oscillation Travel
±50
Load Capacity (kg)
500
Benefits & Features
01
Higher Welding Quality
Automated swing welding ensures consistent penetration and smooth weld beads, minimizing porosity and defects even on complex circumferential joints.
02
Increased Productivity
With digital speed, voltage, and current control, production cycles are shortened, reducing operator fatigue and ensuring stable continuous operation.
03
Versatile Multi-Material Support
Compatible with stainless steel, carbon steel, titanium alloys, and special metals — ideal for aerospace, automotive, shipbuilding, and energy sectors.
04
Cost & Labor Efficiency
Reduces reliance on highly skilled welders by simplifying setup and operation, leading to lower training costs and improved resource utilization.
Application

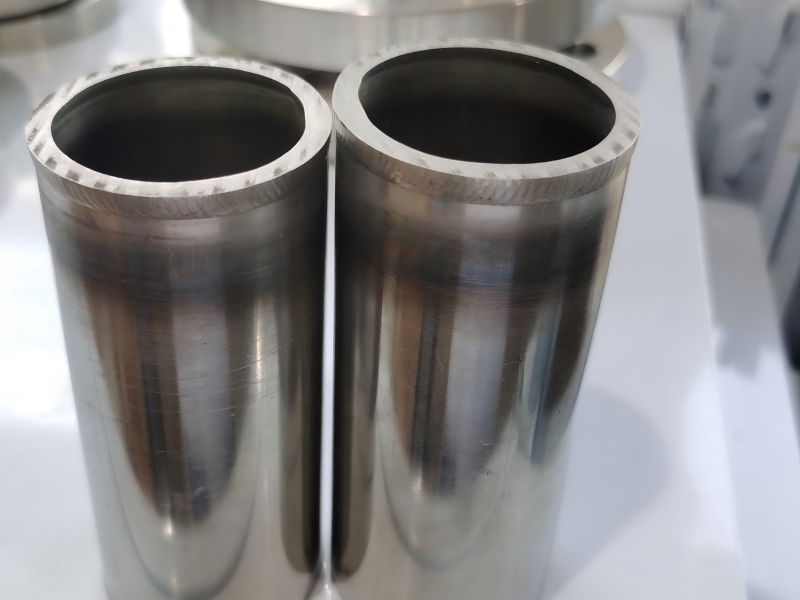

The MWHF-HM is designed for precision circumferential seam welding of pipes, flanges, elbows, and multi-angle tube joints. Its flexibility and high adaptability make it a reliable solution for complex geometries and high-specification welding requirements.
Aerospace & Aviation – precision welding of titanium and stainless steel piping systems.
Automotive & Transportation – exhaust manifolds, fuel lines, and structural components.
Energy & Engineering – oil & gas pipelines, pressure vessels, and heat exchanger tubes.
FREQUENTLY ASKED QUSTIONS
Frequently Asked Questions
Here are some of the most common questions our clients ask about the MWHF-HM welding system, answered by our engineers.
Senior Welding Engineer
What welding processes are supported?
The MWHF-HM supports TIG, MIG, MAG, and PAW, ensuring versatility for different materials.
Can it weld thick and thin materials equally well?
Yes. The machine is designed for pipes and components from small diameters up to Φ500mm with consistent penetration control.
How difficult is it for operators to use?
The system has an easy-to-use interface with digital controls for voltage, current, speed, and wire feeding—reducing reliance on highly experienced welders.
