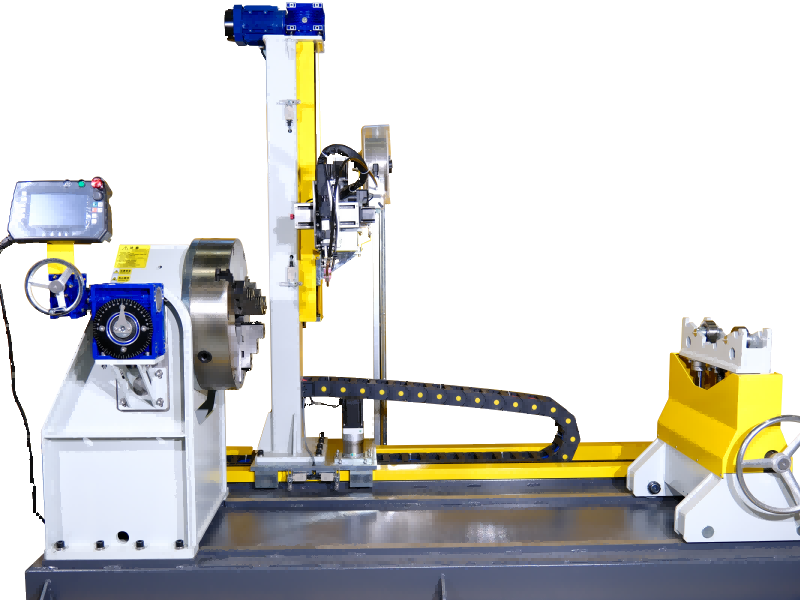

MWHF‑HL Circumferential Hot Wire Welding System
Product Type: Automatic TIG / Hot Wire Cladding System
High‑precision hot wire TIG welding system for circumferential joints. Ensures stable penetration, smooth weld seams, and high deposition efficiency. Ideal for stainless steel, Inconel, and titanium components in petrochemical, energy, and aerospace industries.
Product Features:
High‑efficiency hot‑wire TIG process for superior weld quality
Multi‑axis servo motion with full digital parameter control
Modular design supports quick tooling change and MES integration
Overview
The MWHF‑HL horizontal circumferential welding system is engineered for the automated welding of cylindrical parts, tanks, and pressure vessels. It combines precision motion control with robust mechanical design to ensure high weld quality and repeatability.
Equipped with digital monitoring and adaptive control, it provides stable performance across TIG, MIG, and MAG processes—ideal for stainless steel, titanium, and heat‑resistant alloys used in aerospace, energy, and industrial manufacturing.
High‑accuracy rotation and torch positioning.
Supports multiple welding modes and material types.
Digital interface for consistent process control and traceability.
Specification
Product Name
Model
Seam Welding Machine
MWHF-HL
Applicable Workpiece Diameter
Φ50~500
Welding Torch Travel
0~3000 (customizable)
Spindle Rotation Speed
0.1~2 rpm
Chuck Vertical Travel
250 (electric)
Vertical Electric Slide Travel
0~500 (customizable)
Moving Carriage Travel
0~3000 (customizable)
Boom Extension/Oscillation Travel
±50
Load Capacity (kg)
1200
Benefits & Features
01
High‑Precision Rotary System
Advanced motorized chuck ensures steady, concentric rotation for precise circumferential welding, delivering consistent joint quality even on large or asymmetric components.
02
Extended Arm Travel
Long‑stroke welding arm supports wide‑range motion, allowing flexible setup and easy adaptation to various heat‑exchanger diameters and configurations.
03
Smart Control Interface
Integrated digital control panel enables programmable welding parameters, multi‑layer sequencing, and real‑time monitoring for optimal process efficiency.
04
Modular Integration Design
Compatible with other MWHF units for multi‑station expansion; the modular structure simplifies maintenance and line upgrading while minimizing downtime.
Application
The MWHF‑ML system is engineered for automated circumferential welding of heat exchangers, pressure vessels, and tube assemblies. It delivers stable high‑precision joints in industries requiring consistent weld quality and efficiency in repetitive multi‑layer welding processes.
Heat Exchanger Manufacturing
Pressure Vessel Fabrication
Chemical & Power Equipment Welding
FREQUENTLY ASKED QUSTIONS
Frequently Asked Questions
Our technical team answers the most common customer questions about i the MWHF-HL
Welding Engineer Team , ikratz
What type of welding work is the MWHF‑HL designed for?
It’s optimized for horizontal seam welding on large heat exchangers and heavy cylindrical shells.
Does it support automation or robotic integration?
Yes, the HL model offers PLC and robotic interface compatibility for automated production lines.
Can welding parameters be customized?
Absolutely. All major parameters—speed, current, and torch position—are programmable via the touch control interface.
